CFD Analysis for Resilient Data Center Cooling: Why It Matters (and What Can Go Wrong)

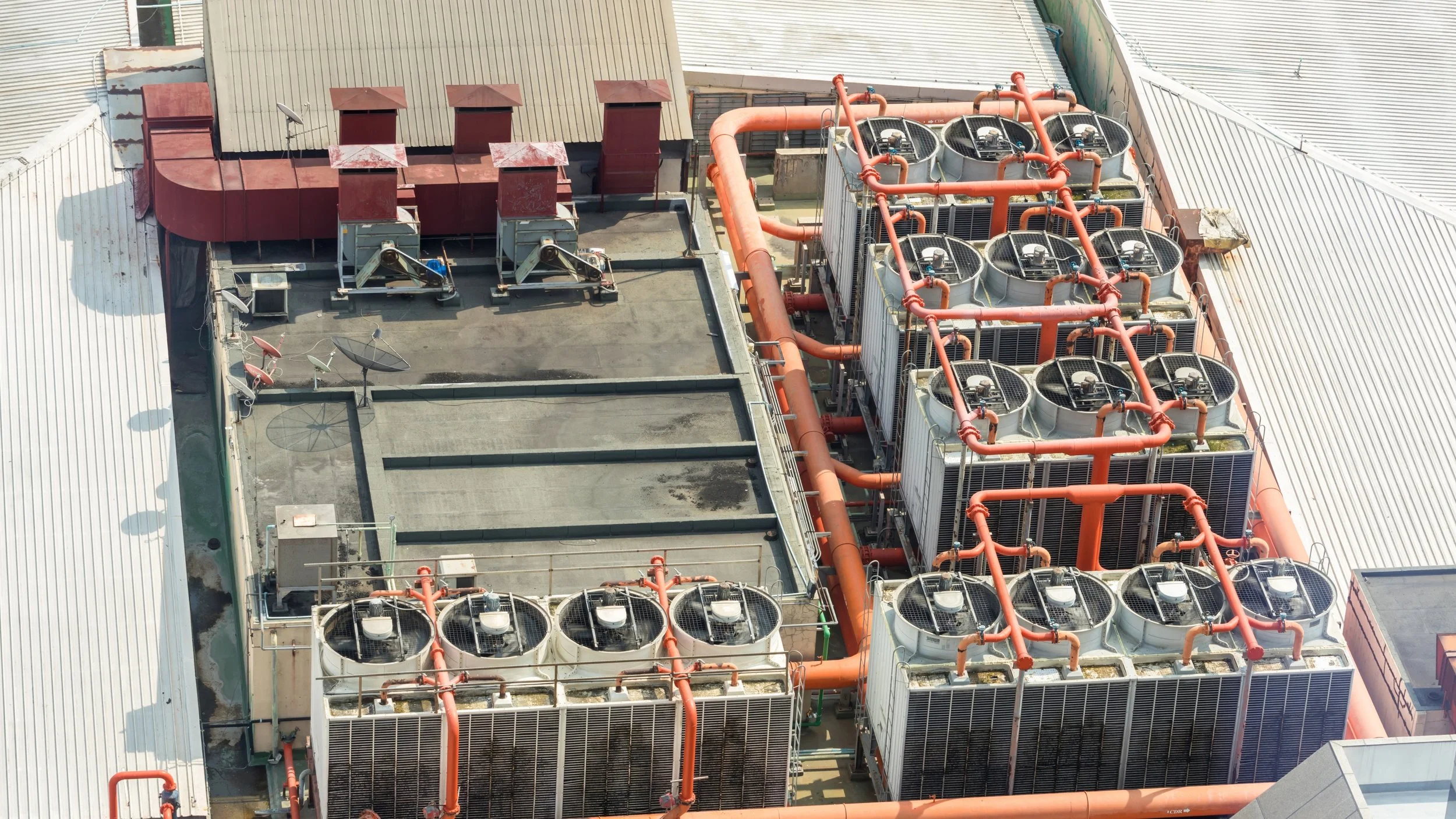

Image Credit: Canva
In today’s data-driven world, where a recent study from Splunk and Oxford Economics estimates downtime costs global companies $400 billion annually, uptime isn’t optional—it’s the bedrock of the digital economy. And as data center density and power usage climb, cooling systems are under increasing pressure to perform. A single miscalculation in airflow distribution can lead to hotspots, equipment throttling, or worse—shutdowns that ripple through critical operations.
That’s where Computational Fluid Dynamics (CFD) analysis comes in. At Pragmatic Professional Engineers, we use CFD modeling not just as a validation tool, but as a proactive strategy to ensure resilient, right-sized, and future-proofed cooling systems for high-stakes environments.
So, what makes CFD so essential? More importantly, what are the consequences when it’s skipped or poorly executed?
When "Good Enough" Cooling Isn’t Good Enough
In large-scale data centers, especially those with 500+ racks or mixed-density loads, relying solely on rules of thumb or design spreadsheets leaves room for costly blind spots. Industry benchmarks have evolved significantly; what was once a 5 kW rack is now often 15 kW, with high-performance computing demanding 50 kW or more. This reality makes historical assumptions dangerous. For example:
What if airflow short-circuits and bypasses high-density racks altogether?
What happens when an air terminal fails partially open, and no one notices?
How will the system respond under partial load or when a computer room air handler (CRAH) unit drops offline?
We’ve seen these questions play out in real-world scenarios, and we’ve helped our clients find the answers before they became problems.
AEC Insight: Designing to the Standard
The American Society of Heating, Refrigerating and Air-Conditioning Engineers (ASHRAE) provides the definitive technical standards for data center design and operation. Their TC 9.9 Thermal Guidelines for Data Processing Environments establish specific, risk-based thermal envelopes for IT equipment. Adhering to these guidelines is critical for reliability, and CFD analysis is the most effective way to validate that a design meets these precise requirements under a full range of operating conditions.
Inside Our Approach: Smart Modeling, Meaningful Outcomes
Across recent projects in Texas and Washington, our team provided CFD analysis for data halls hosting anywhere from 300 to over 1,000 server racks. Each model was custom-built using client-provided Revit or AutoCAD files and tuned for real-world conditions—densities and loads that far exceed today's average and demand specialized thermal strategies:
Diverse rack densities – from 32.7 kW to 50 kW per rack
Redundancy scenarios – simulating the impact of turning off CRAHs nearest high-density zones
Design airflow assumptions – such as 140–160 CFM/kW server loads
Failure conditions – examining outcomes when air terminals are partially blocked
For example, in our analysis for a 1,000-rack data hall in Plano, TX, we modeled steady-state cooling performance and pressure distributions using Cadence 6Sigma software. One scenario simulated a seemingly minor oversight: a partially shut damper. The result? A surprising spike in local inlet temperatures—enough to jeopardize uptime in a high-performance zone. That insight led the client to revise their airflow monitoring protocols and add redundancy where it mattered most.
Meanwhile, in Quincy, WA, our CFD study for a dual data hall system not only verified cooling efficacy under full load, but also uncovered asymmetries in the design that would have otherwise led to uneven rack performance. By identifying this early, we helped the design team adjust duct layouts to ensure uniformity across all 760 racks.
What Sets Our CFD Process Apart
At Pragmatic, we believe that the value of CFD lies in both the science and the storytelling. That’s why our process emphasizes:
Contextual Modeling – We tailor each simulation to the architectural realities and actual operational goals—not theoretical “perfect” conditions.
Design Scenario Testing – Full-load, partial-load, and failover cases are run to explore vulnerabilities before they become liabilities.
Transparent Simplification – Clients approve all modeling assumptions, and we document them clearly in our Basis of CFD report.
Actionable Reporting – Visual outputs aren’t just technical renderings—they’re tools to drive smarter decisions and gain stakeholder buy-in.
And because we specialize in mechanical systems for mission-critical environments, we speak both engineering and operational languages. Our reports help bridge the gap between design intent and data center reality.
The Cost of Skipping CFD
CFD is often seen as a “nice to have” during fast-paced project timelines. But as we’ve seen in both retrofits and greenfield builds, skipping it often leads to:
Oversized or misconfigured cooling systems
Undetected dead zones or hotspots
Costly rework during commissioning
Degraded Power Usage Effectiveness (PUE), leading to higher energy bills and a larger carbon footprint
Reduced IT equipment lifespan and reliability
In contrast, our clients have used our CFD insights to optimize mechanical layouts, justify capital expenditures, and improve the long-term resiliency of their cooling strategy.
Why It Matters Now More Than Ever
The margin for error in data center cooling is shrinking. The global data center market is projected to grow from $248 billion in 2023 to nearly $400 billion by 2029, largely driven by artificial intelligence. According to the American Action Forum, generative AI workloads can require 10 to 30 times more energy than traditional computing, pushing thermal envelopes beyond the limits of conventional air cooling.
This shift is accelerating the adoption of advanced solutions like direct-to-chip liquid cooling, which itself requires sophisticated modeling to implement correctly. Facility operators, developers, and design teams need confidence that their systems won’t just meet spec—but perform predictably under stress.
That’s why we treat CFD not as a box to check, but as a key step in delivering engineering that holds up in the real world.
Let’s Build It Right—Together
If you're planning a new data hall, upgrading an existing space, or preparing for high-density clusters, we’d love to bring our experience to the table. Our CFD analysis services are designed to reduce risk, improve performance, and help you sleep a little better at night.
